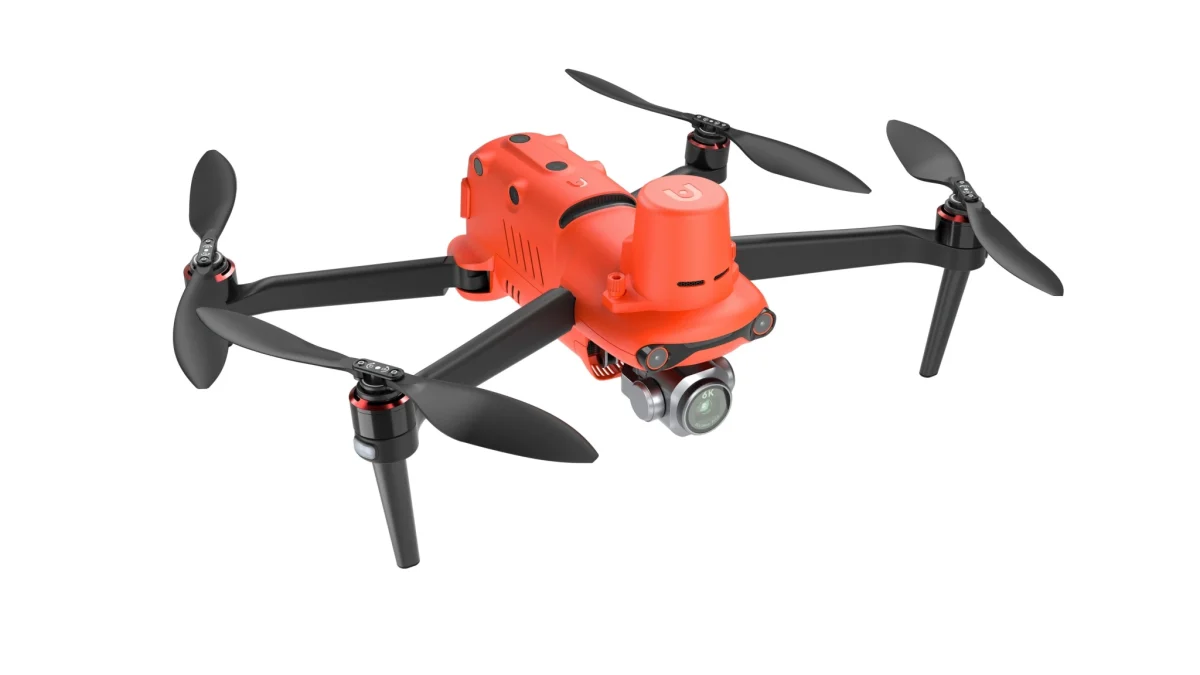

Autel EVO II RTK Drone

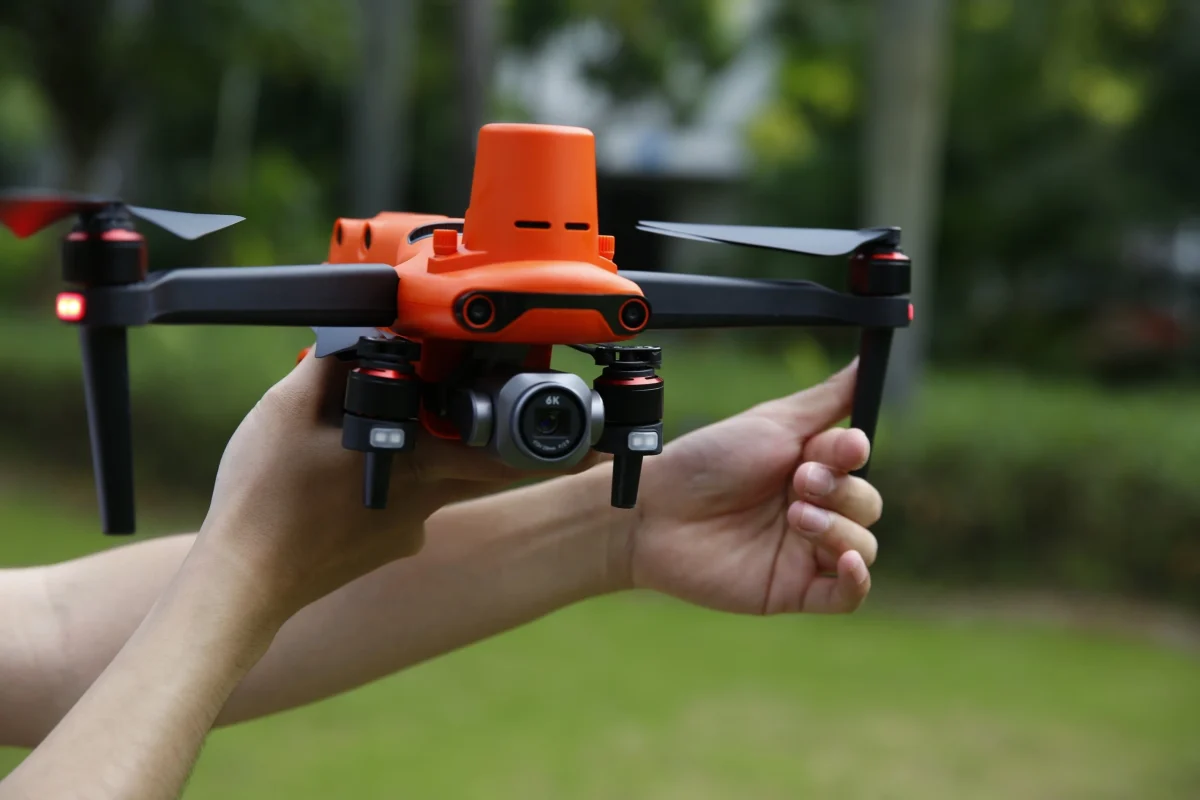

Camera System: The Autel EVO II RTK is equipped with a 50 MP camera featuring a 1/1.28” CMOS sensor, offering high-resolution imagery for various applications.
Thermal Camera: The Dual 640T RTK variant includes a thermal camera with a 640 × 512 resolution, suitable for thermal imaging needs.

Transmission System: Utilises Autel’s SkyLink 2.0 technology, supporting a maximum transmission range of up to 15 km (9.3 miles) under optimal conditions.
Frequency Bands: Operates across multiple frequency bands, including 2.4 GHz, 5.2 GHz, and 5.8 GHz, with automatic frequency hopping to minimize interference.

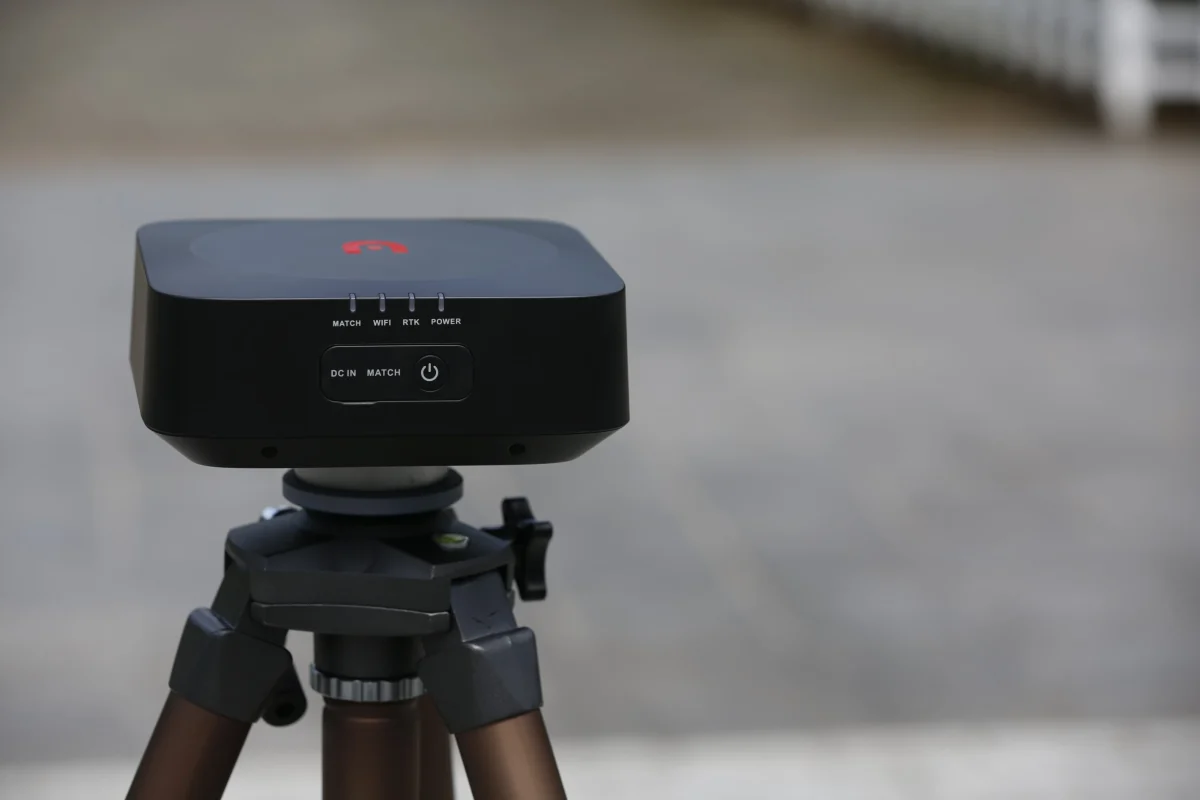

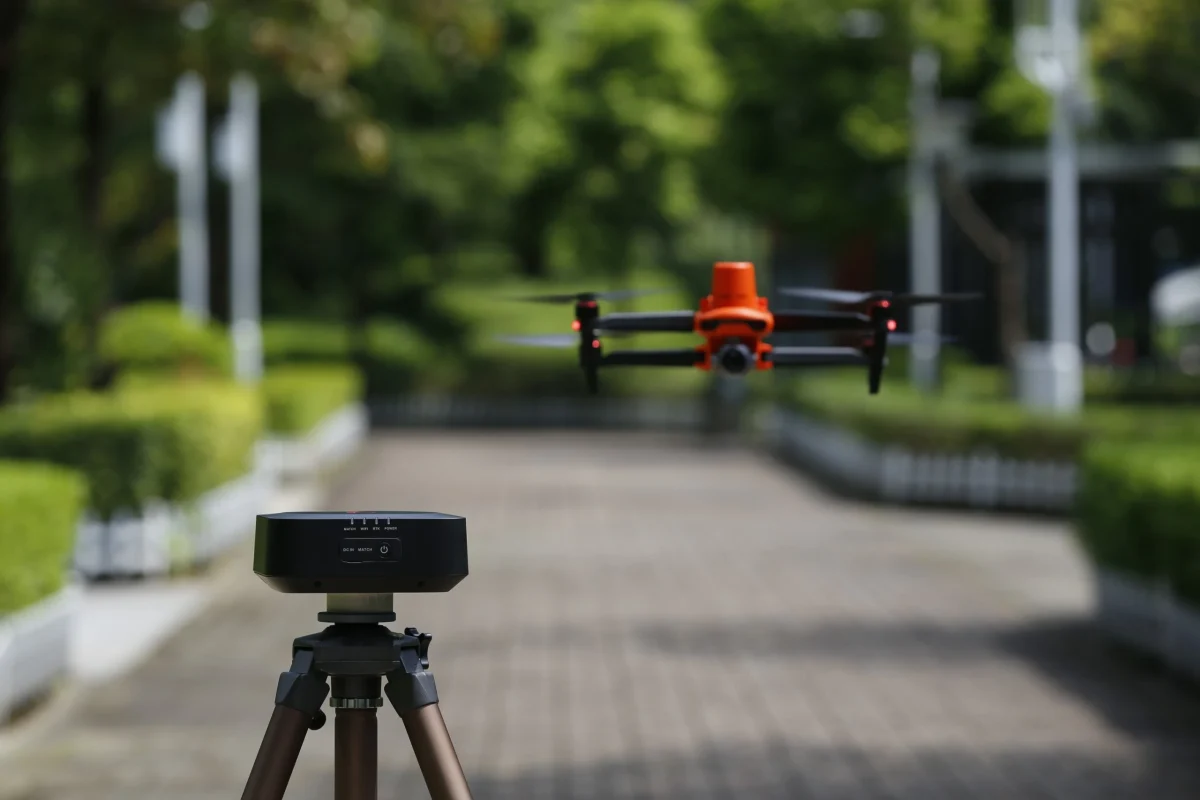

RTK Module: Integrated RTK module provides real-time centimeter-level positioning data and supports Post-Processing Kinematic (PPK). The system is compatible with NTRIP networks and third-party base stations, eliminating the need for Ground Control Points (GCPs) in many scenarios.

Maximum Horizontal Speed: Up to 20 m/s (72 km/h) in Ludicrous mode.
Maximum Ascent Speed: Up to 8 m/s (28.8 km/h) in manual control mode.
Maximum Descent Speed: Up to 4 m/s (14.4 km/h).
Wind Resistance: Withstands winds up to Level 8, approximately 12 m/s (43.2 km/h), ensuring stable flight in moderate wind conditions.

Folded Dimensions: 230 mm × 130 mm × 143 mm.
Unfolded Dimensions: 457 mm × 558 mm × 143 mm.
Wheelbase: 397 mm.
Weight: Approximately 1237 g (with propellers and battery).
