Payload

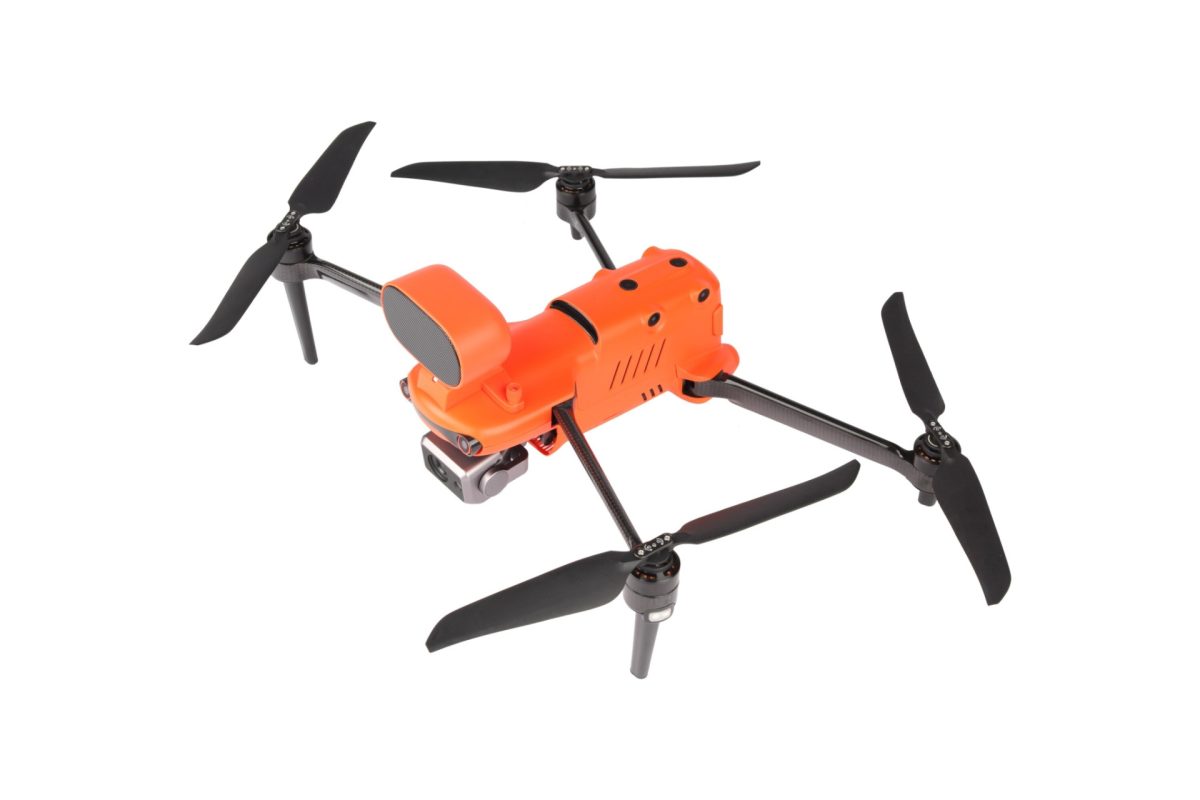

Camera System: The Autel EVO II Enterprise is equipped with a dual-sensor payload:
Thermal Camera: 640 × 512 resolution, providing detailed thermal imaging.
Visual Camera: 50 MP, 1/1.28” CMOS sensor, offering high-resolution visual imagery.
Connectivity
Transmission System: Autel SkyLink 3.0 with 4 antennas and 4 frequency bands (900 MHz, 2.4 GHz, 5.2 GHz, 5.8 GHz), enabling a transmission distance of up to 15 kilometers.
Frequency Bands: Auto frequency hopping across 900 MHz, 2.4 GHz, 5.2 GHz, and 5.8 GHz, automatically selecting the optimal channel based on electromagnetic interference for robust anti-interference capabilities.
Speed
Maximum Horizontal Speed: Up to 45 mph (20 m/s) in Ludicrous Mode.
Maximum Ascent Speed: Up to 18 mph (8 m/s).
Maximum Descent Speed: Up to 9 mph (4 m/s).
Maximum Wind Resistance: Up to 27 mph (12 m/s).
Dimensions
Folded Dimensions: 245 mm × 130 mm × 111 mm.
Unfolded Dimensions: 506 mm × 620 mm × 111 mm.
Diagonal Wheelbase: 427 mm.
